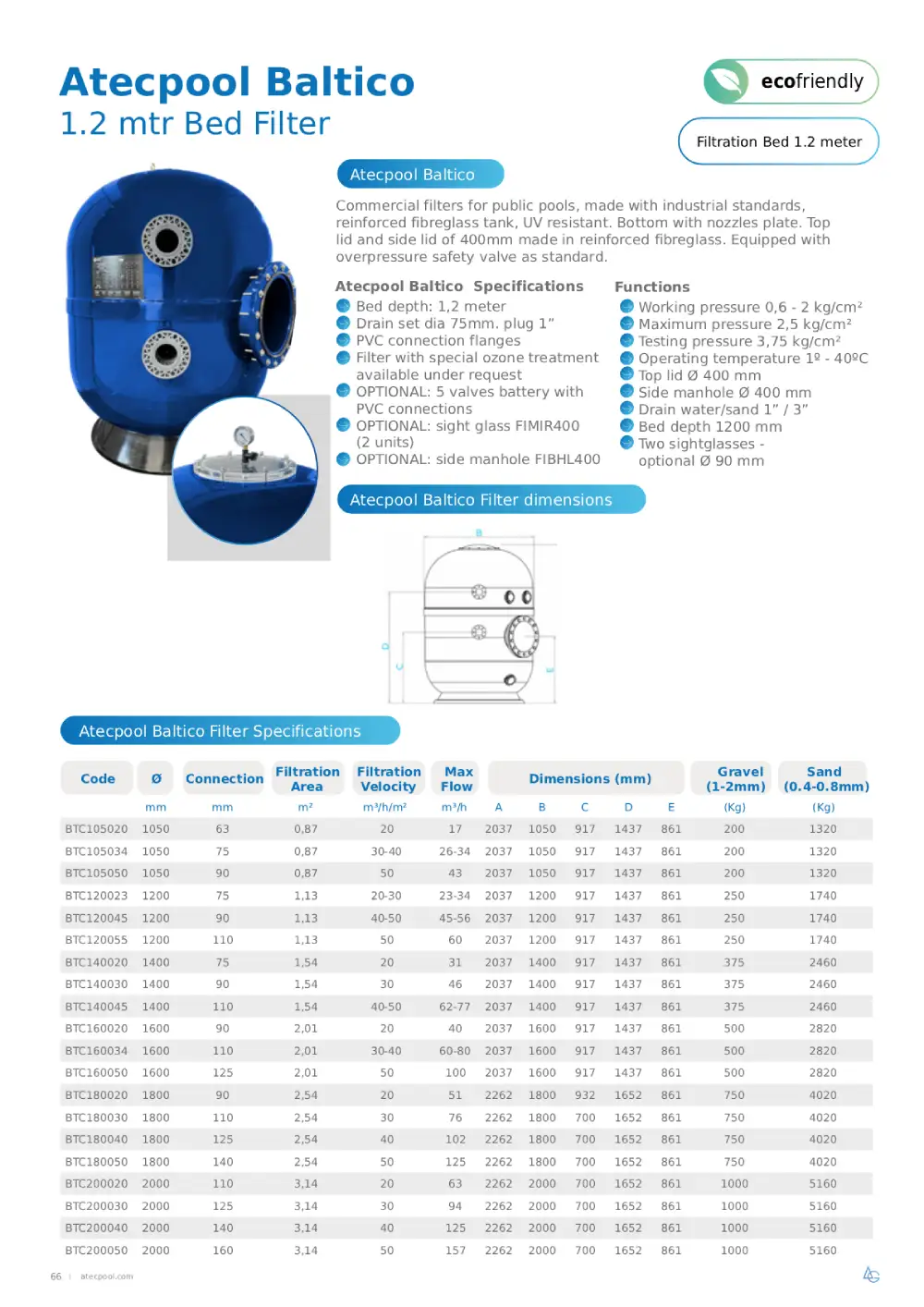

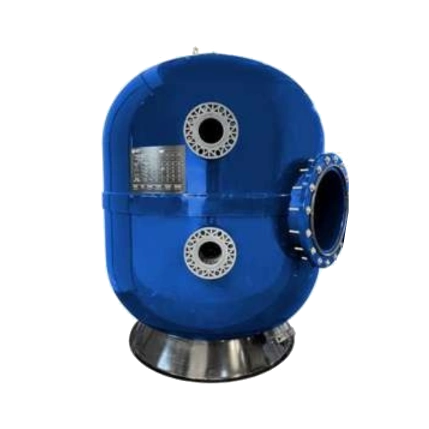

Atecpool Baltico Filter

• Bed depth: 1,2 meters
• Drain set dia 75mm. plug 1”
• PVC connection flanges
• Filter with special ozone treatment available on request
• OPTIONAL: 5-valve battery with PVC connections
• OPTIONAL: sight glass FIMIR400(2 units)
• OPTIONAL: side manhole FIBHL400

Functions

• Working pressure 0,6 – 2 kg/cm²
• Maximum pressure 2,5 kg/cm²
• Testing pressure 3,75 kg/cm²
• Operating temperature 1º – 40ºC
• Top lid Ø 400 mm
• Side manhole Ø 400 mm
• Drain water/sand 1” / 3”
• Bed depth 1200 mm
• Two sightglasses -optional Ø 90 mm
