- High efficiency motor class IE3 according to regulation ECn˚ 640/2009
- Waterproof: IP55
- Flow rate: up to 190 m³/h
- Voltage: 230/400V or 400/690V
- Motor: 50Hz / 3000 rpm
- Available also at 60Hz
- Available in bronze for operation with salt chlorinators and seawater.
- Motor insulation: Class F

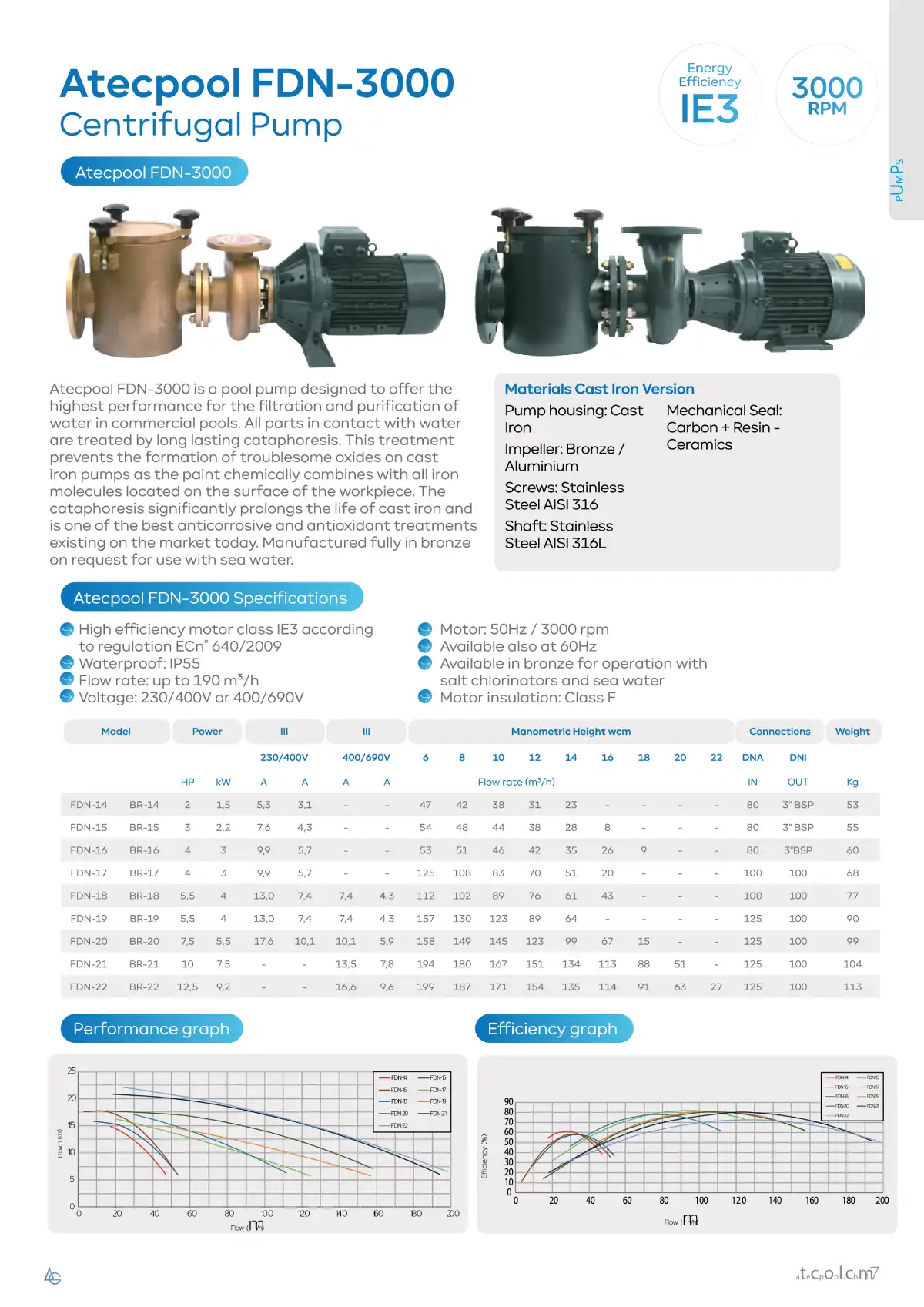

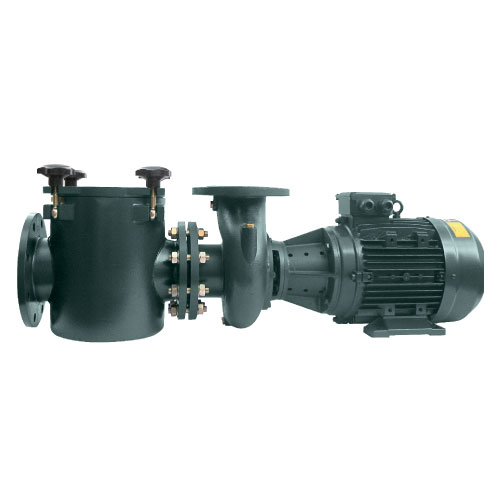

Atecpool FDN-3000 is a pool pump designed to offer the highest performance for the filtration and purification of water in commercial pools. All parts in contact with water are treated by long-lasting cathode protection. This treatment prevents the formation of troublesome oxides on cast iron pumps as the paint chemically combines with all iron molecules located on the surface of the workpiece. The Cataphoresis significantly prolongs the life of cast iron and is one of the best anticorrosive and antioxidant treatments existing on the market today. Manufactured fully in bronze on request for use with sea water.
Materials Cast Iron Version
Pump housing: Cast Iron
Impeller: Bronze / Aluminium
Screws: Stainless Steel AISI 316
Shaft: Stainless Steel AISI 316
Mechanical Seal: Carbon + Resin -Ceramics
