Atecpool Inox AISI 316 Filter

Atecpool

Atecpool Inox AISI 316 Filter

Stainless Steel Filters

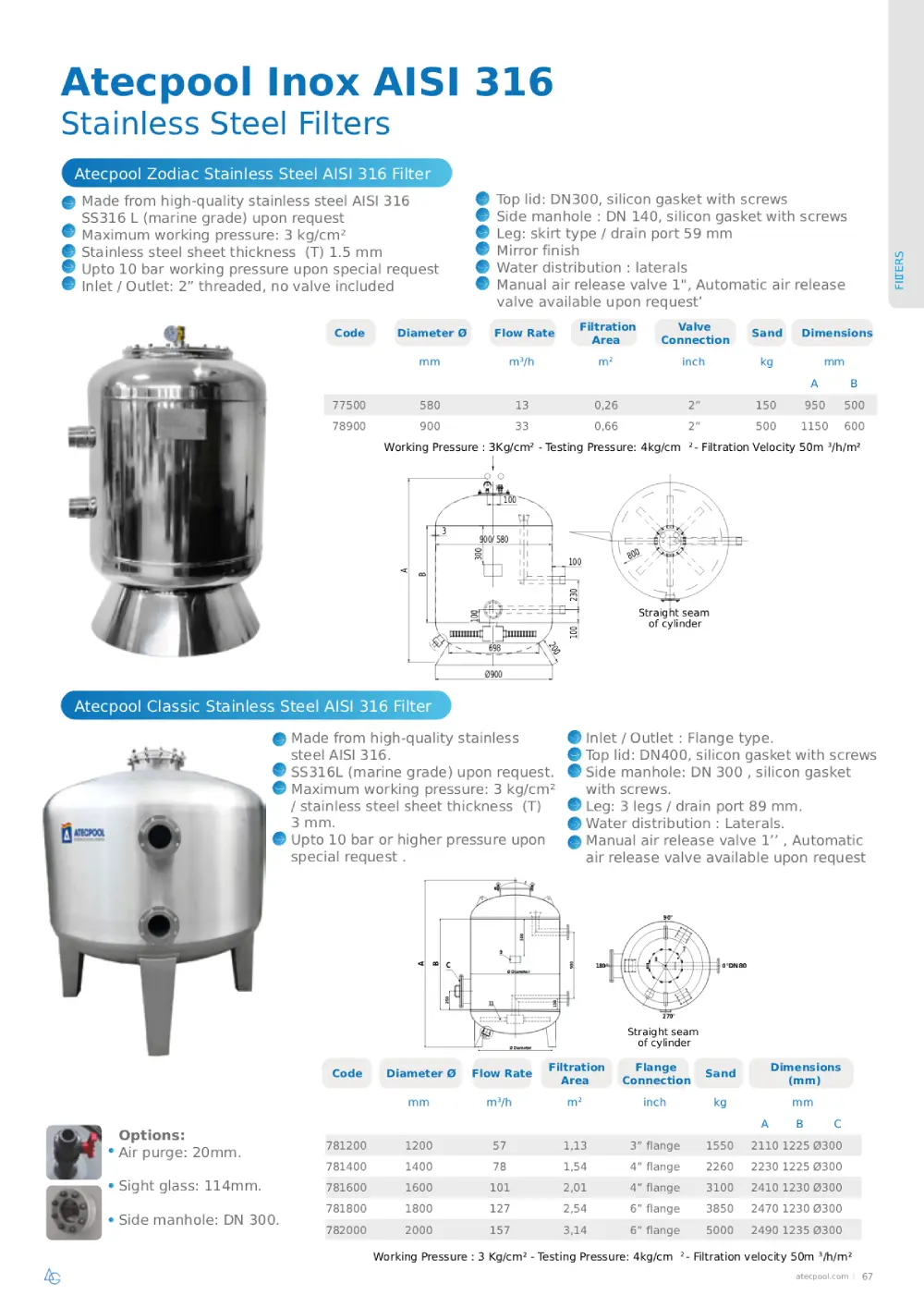

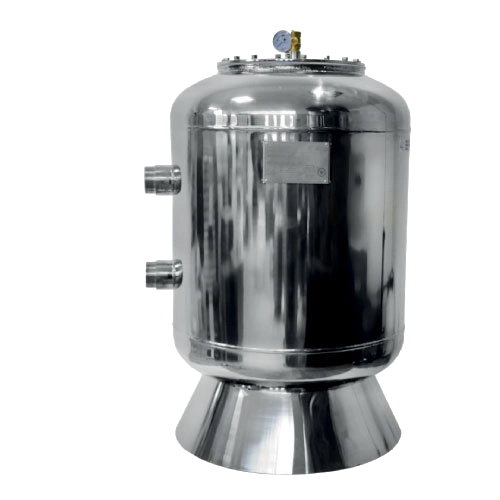

Atecpool Zodiac Stainless Steel AISI 316 Filter

Made from high-quality stainless steel AISI 316 SS316 L (marine grade) upon request.
Maximum working pressure: 3 kg/cm²
Stainless steel sheet thickness (T) 1.5 mm
Up to 10 bar working pressure upon special request.
Inlet / Outlet: 2” threaded, no valve included

Category: Pool Filtration

Tag: pool filter

Brand: Atecpool

Description
Reviews (0)

Top lid: DN300, silicon gasket with screws
Side manhole: DN 140, silicon gasket with screws
Leg: skirt type/drain port 59 mm
Mirror finish
Water distribution: laterals
Manual air release valve 1″, Automatic air release valve available upon request.

Working Pressure : 3Kg/cm² – Testing Pressure: 4kg/cm2 – Filtration Velocity 50m3/h/m²
