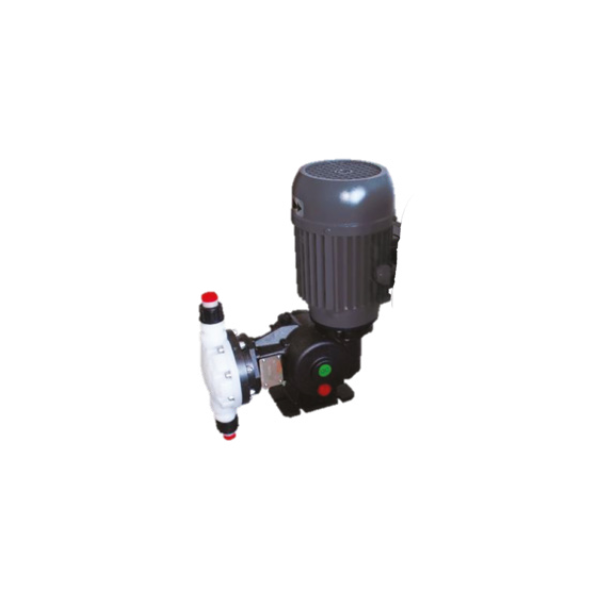

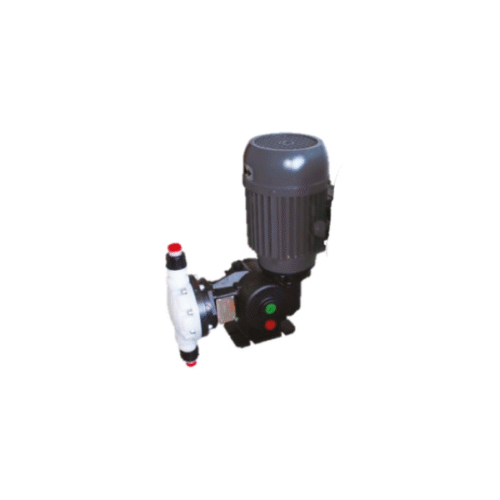

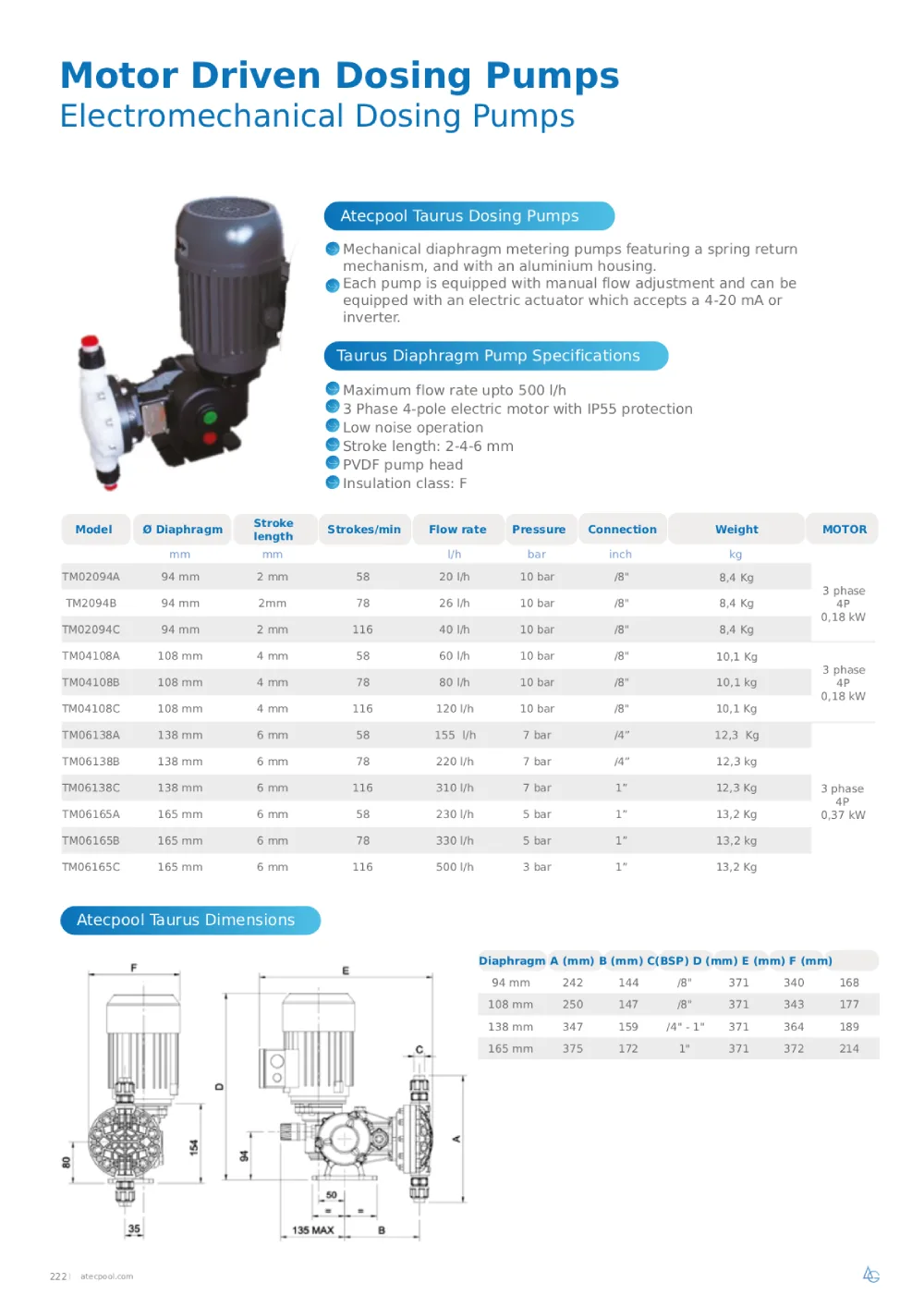

Atecpool Taurus Dosing Pumps

Mechanical diaphragm metering pumps featuring a spring return mechanism, and with an aluminium housing.
Each pump is equipped with manual flow adjustment and can be equipped with an electric actuator which accepts a 4-20 mA or inverter

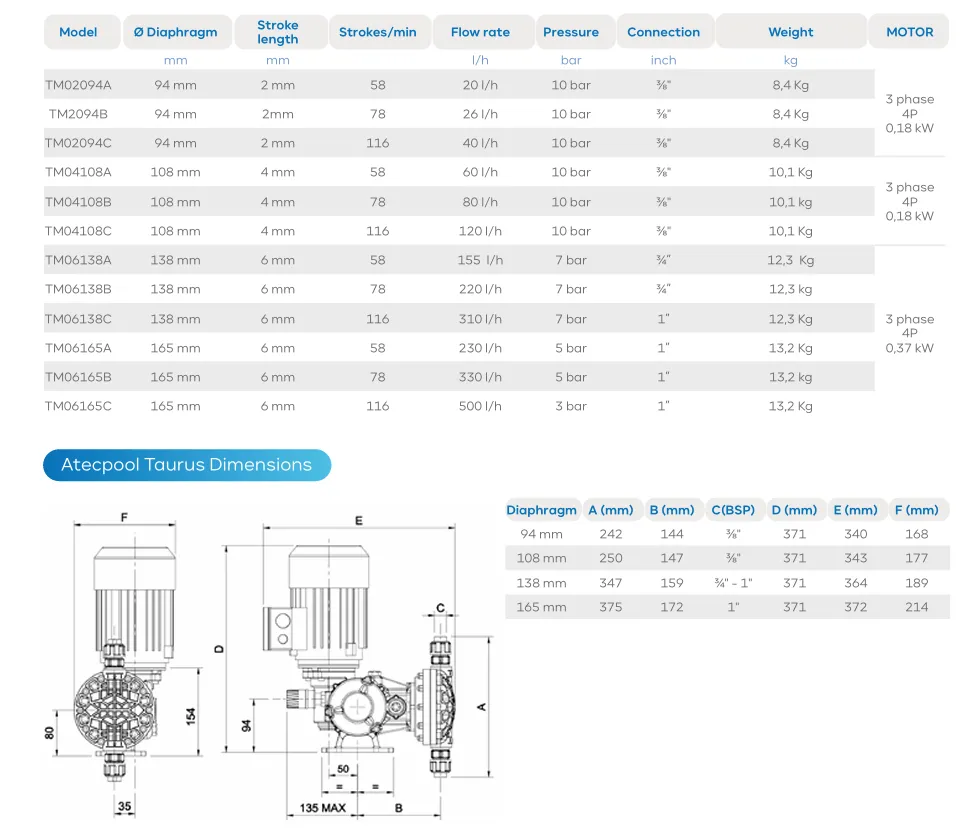

Taurus Diaphragm Pump Specifications

Maximum flow rate upto 500 l/h
3 Phase 4-pole electric motor with IP55 protection
Low noise operation
Stroke length: 2-4-6 mm
PVDF pump head
Insulation class: F
